Small Embedded 2D QR Code Barcode Scanner Module with 1 Million Pixel CMOS Image Recognition and 65cm/s Scan Speed

MOQ : 1

Price : 20

Model NO. : DE2390

Interface Type : USB

Scan Speed : 65cm/S

Scan Element : CMOS

Resolution : 3mil/0.076mm

Image Sensor : 1280*800

Scan Mode : Auto Scan, Continuous

Print Contrast : 20%

Power Supply : DC 3.3V, 200mA

Dimensions : 21.5mm L* 15.9mm W * 11.30mm H

Light Source : White LED, Red LED

CPU : ARM32-bit

Depth of Field : 50mm~750mm

Motion Tolerance : 65cm/s

Operating Temperature : -20ºC to 50ºC

Contact Now


Product Description

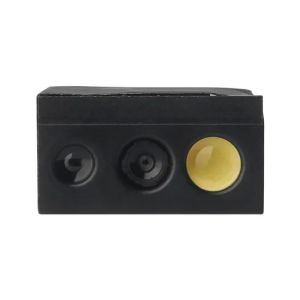

Small Embedded 2D QR Code Barcode Scanner Module with 1 Million Pixel CMOS Image Recognition and 65cm/s Scan Speed
Small Embedded 2D Qr Code mini  passport OCR  image Barcode Scanner Module

DE2390 is a high-performance embedded 2D barcode module with advanced CMOS image recognition technology.
1 million pixel global camera with excellent reading performance, can easily read paper,  screen and other barcodes on the media.
It has OCR function, which support reading some ID and passport characters.
Product Parameters

Size 21.5mm L* 15.9mm W * 11.30mm H
Interface USB,USB-com(Need driver) ,TTL
(USB protocol:Full Speed ,USB 2.0)
Light Source Lighting: white LED  Aiming: Red LED,wavelength coverage 525nm
CMOS 1280*800 CMOS
CPU ARM32-bit
Resolution ≥3mil/0.076mm(PCS90%,CODE 39)
Depth of field 50mm~750mm ( Different barcode types)
Scan mode Trigger mode,Auto scan, Continuous, Command control
prompting mode LED indicating lamp,buzzer
Reading angle Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater)
visual angle Horizontal 40°× Vertical 27°
Motion tolerance 65cm/s
Power input 3.3V,  standby current:95mA,Decoded average current:200mA
Print contrast 20%PCS
Symbologies 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban,GS1 Composite etc.
2D: QR Code,  Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc.
operating temperature -20ºC to 50ºC
storage temperature -40ºC to 60ºC
Humidity 5% to 95%(non-condensing)
Transport vibration test 10H@125RPM
